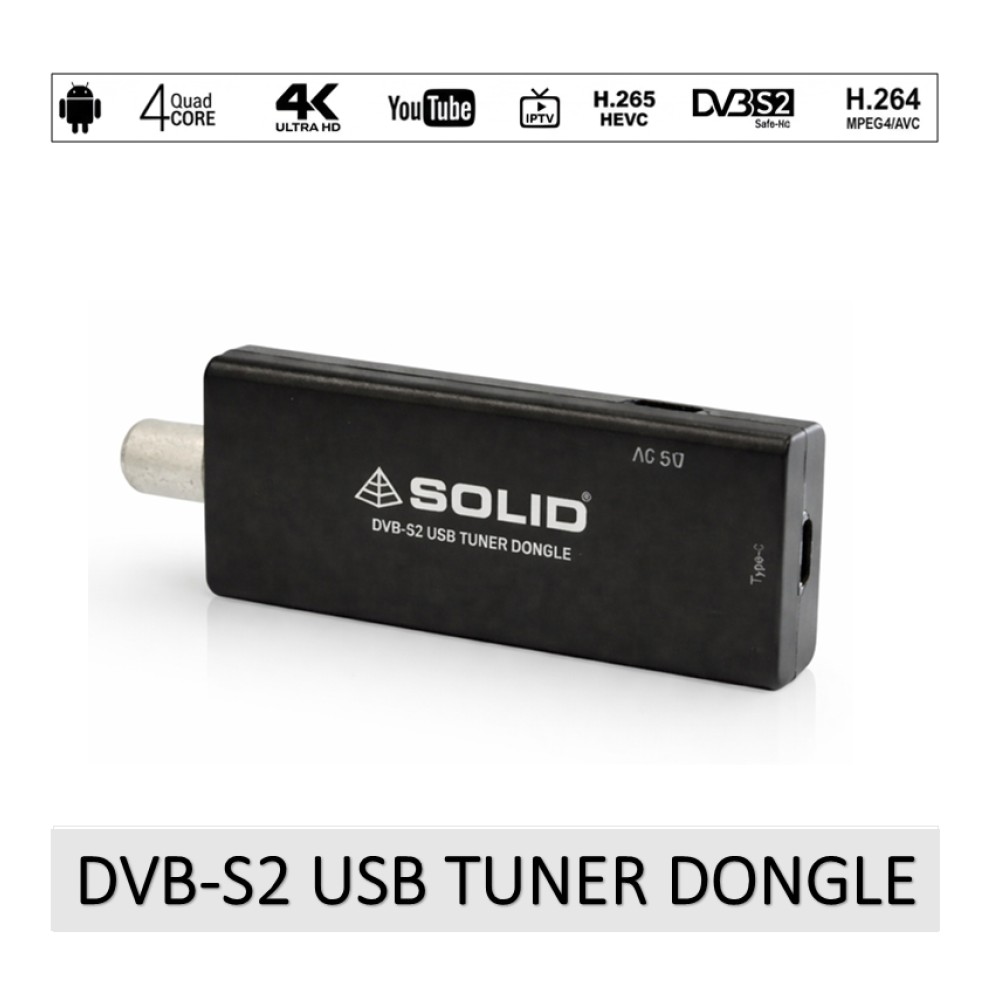

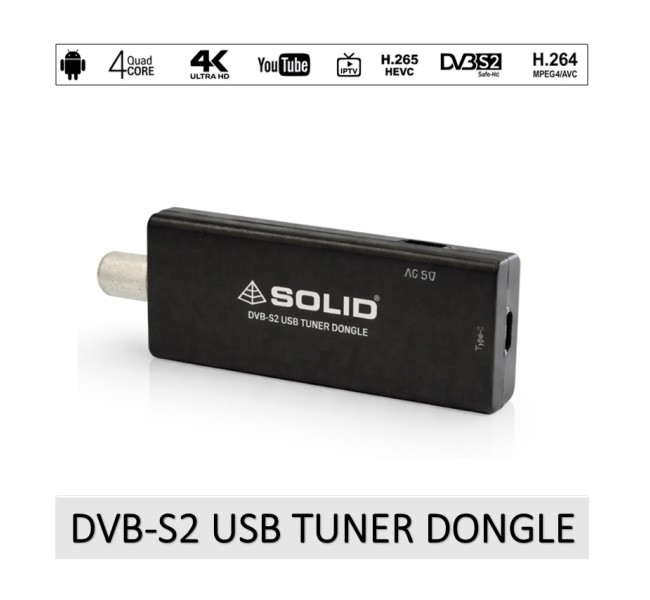

General Features

DVB-S/S2 demodulator, powered by Availink 6221C, DVB-S/S2 Tuner, powered byRDA5815M.

Media stream and instructions communicate with USB 2.0, powered by ITE IT9303.

Work with various Android OTT, TV and smart phone.  Android App, work with the RCU coming with the Android OTT or TV or any android device.

Software descrambling with CSA, DES , support EMU and sharing

The same hardware can be designed into a Android OTT box or TV main board.

support DVB-S2x if use Availink 6261

Support HEVC H.265 & 4K & various Android OS versions, 9,10.. 15 and higher in the future.

Size

Dongle Length x Width x Height 80 mm x 35 mm x 15 mm

Interfaces

Single RF tuner with F type connector

USB 2.0 with cable

Power Supply

Voltage 5.0V from USB interface 

Type-c socket for additional 5V power supply for DiSEqC 1.2 and USALS or other cases.

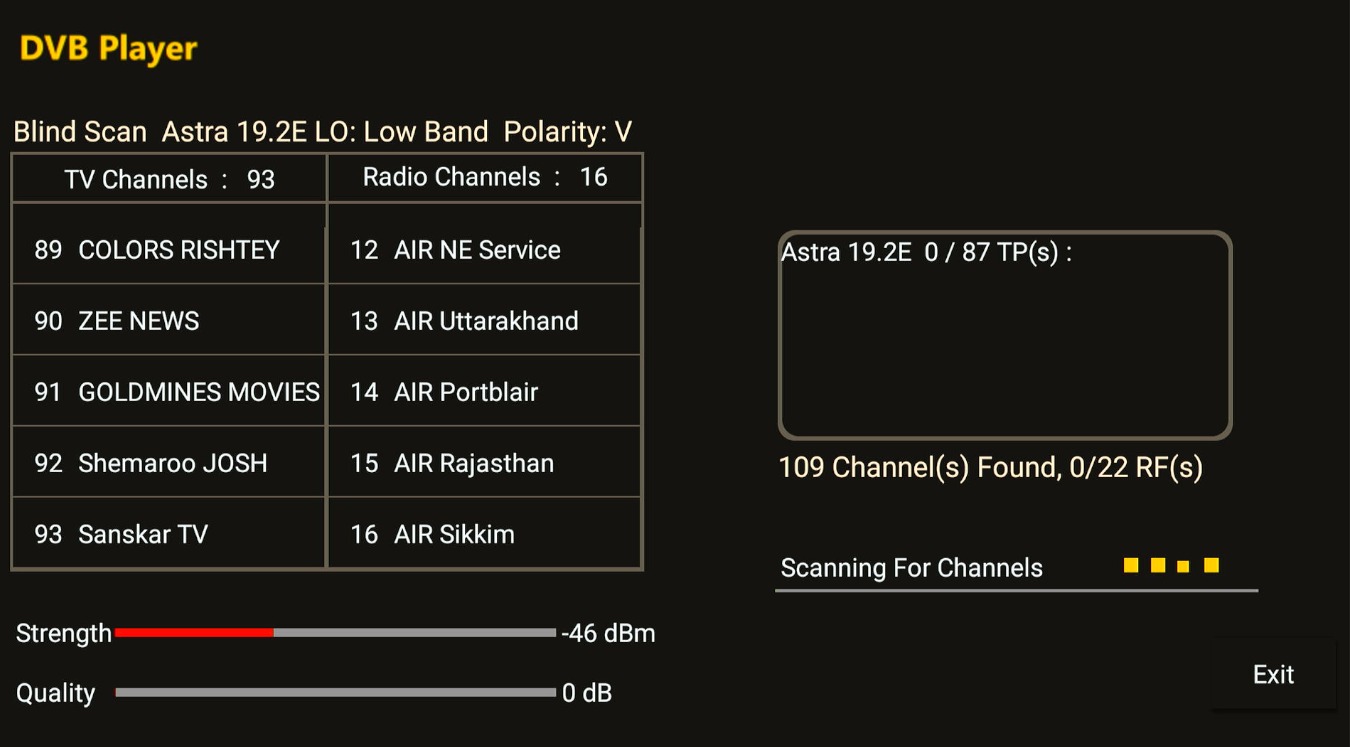

Function with App

Scan with auto scan, blind scan, and play DVB-S/S2 channels H.264/H.265

Support DiSEqC1.0 , DiSEqC1.1, Multiswitch and Unicable

Play-A-Rec-B in the same frequency.

Support EPG and Timer

 Various types of channel list and channel editing

Easy UI, accessed with common buttons(Menu,OK, Back and Left/Right/Up/Down) in RCU, or accessed with touch screen and mouse. Support hardware and software A/V decoder

Support EMU, N*cam, C*cam, or private protocols

Easy and Fast to update the App
