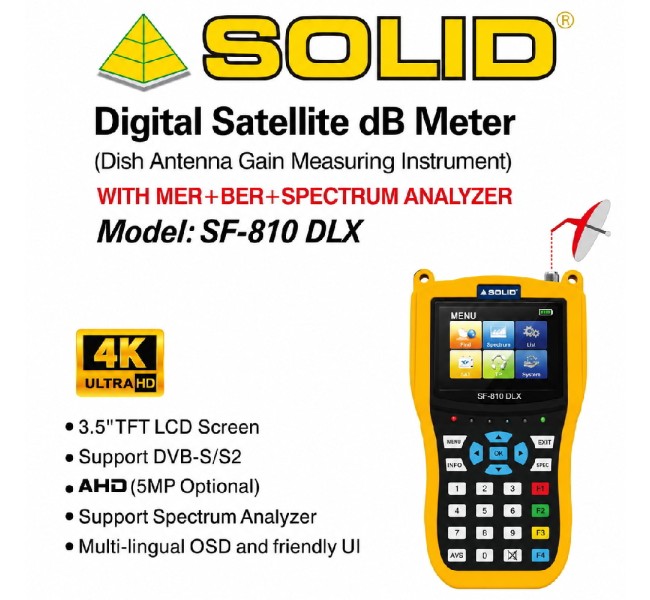

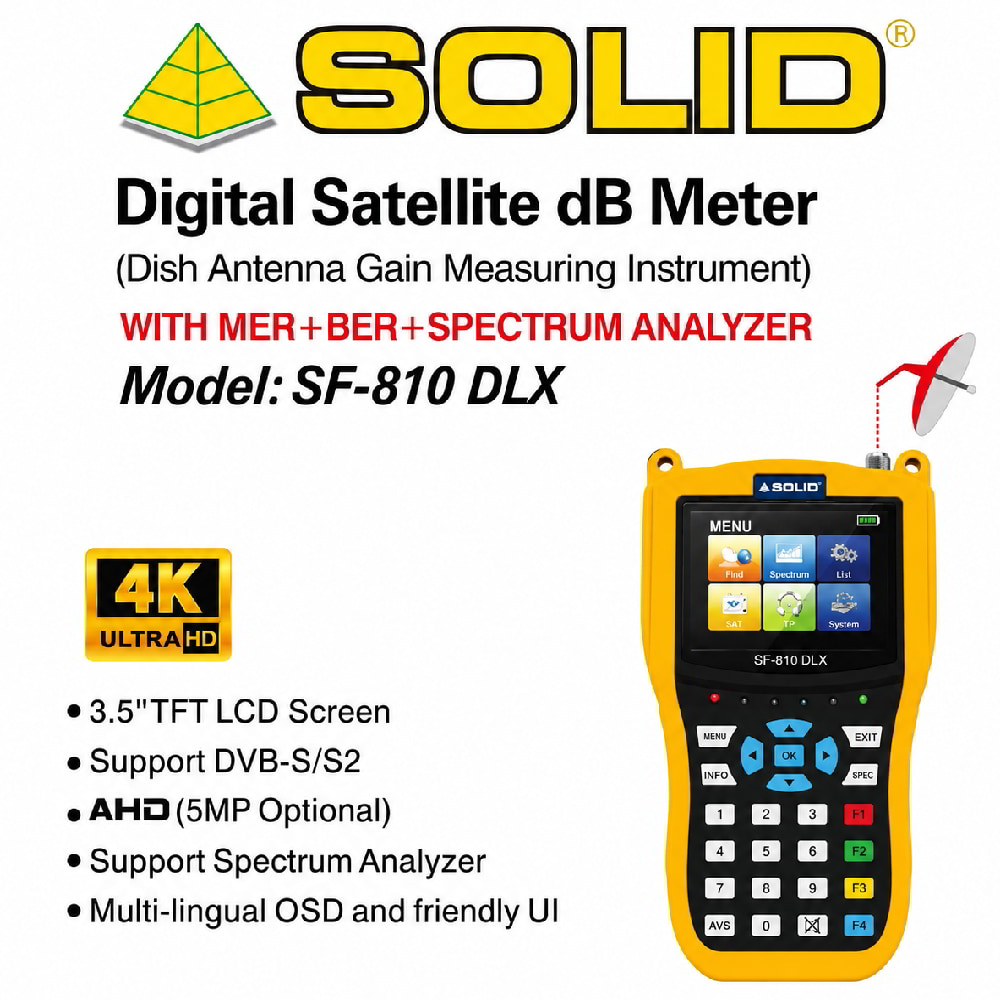

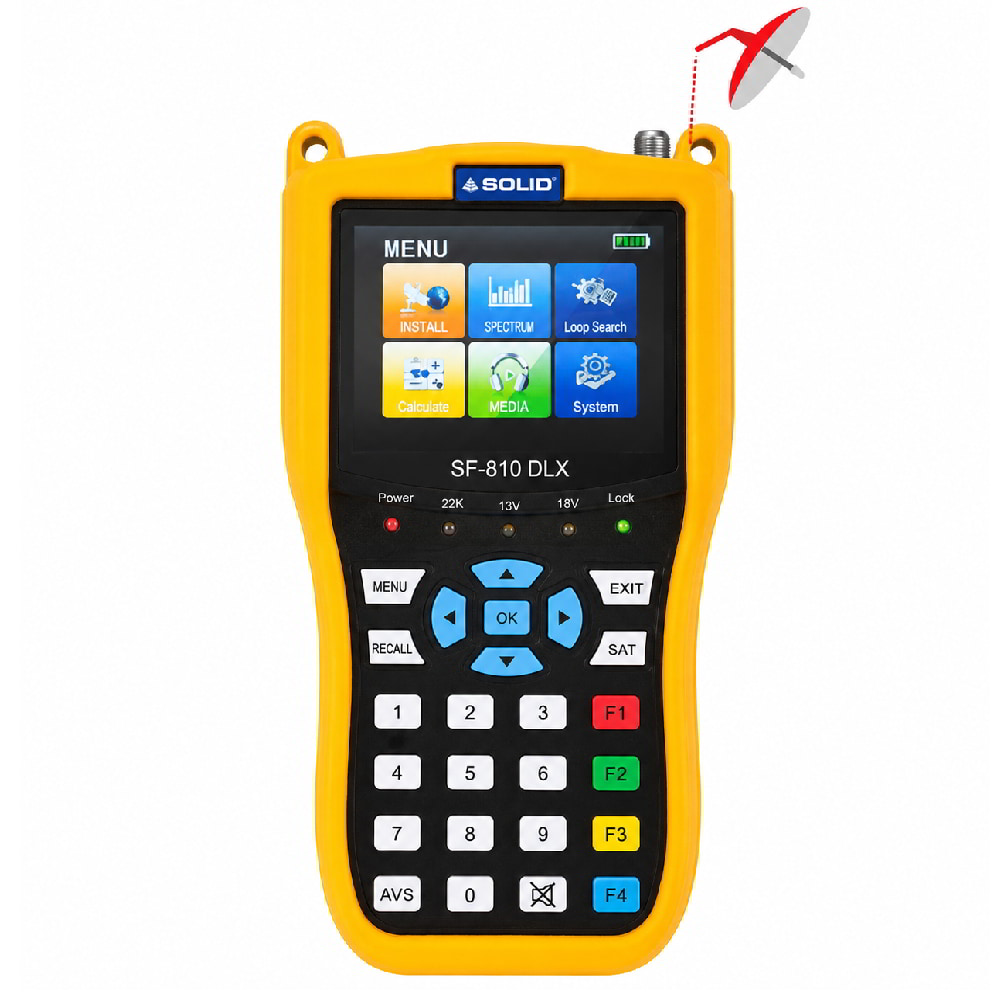

SOLID SF-810DLX Digital Satellite dB meter with Live TV Screen
Features:
- 3.5''TFT LCD Screen
- Support DVB-S/S2
- Support CCTV camera testing
- AHD(5MP Optional)
- Support Spectrum Analyzer
- Multi-lingual OSD and friendly UI
Specifications:
| System Resources | |
| Main Processor | 600M Hz based CPU |
| Flash Memory | 64M Bits |
| DDR2 SDRAM | 512M Bits |
| Tuner/Front-end | |
| Tuner Type | DVB-S/DVB-S2 |
| Input Connector | F-type |
| Frequency Range | 950MHz~2150MHz |
| Signal Level | -65~-25dBm |
| Impedance | 75Ω |
| LNB Power & Polarization | Vertical:+13V |
| Horizontal:+18V | |
| Current:Max.500mA | |
| Overload Protection | |
| DiSEqC Control | Version 1.0/1.1/1.2/1.3, USALS Available |
| 22KHz Tone | Frequency:22±1KHz |
| Demodulation | QPSK,8PSK,16APSK,32APSK |
| Symbol Rate | 1~60Msps |
| Power Supply | |
| Input Voltage Adapter | Free Voltage (100~240V AC 50/60Hz) |
| Power Consumption | 10W MAX |
| Power charger output | 14V DC 2A |
| Battery | 12.6V/2200mAh |
| Battery charging time | 6H |
| Battery standard discharging time | 3-4H |
| CCTV input | CVBS(SF-3600G) CVBS/ TVI /CVI /AHD(SF-3600GC) |
| Video Output | RCA(CVBS, L), HD TV Interface |
| Power Output | DC12V |
| Audio output | Built-in Loudspeaker |
| USB | 1*USB 2.0 slot Compatible for Host |
| Transport Stream | MPEG-2/4, H.264 |
| Physical Specification | |
| LCD size | 3.5 inch |
| Display Resolution | 320(RGB)*240 |
| Operating Temperature | 0℃ ~ + 45℃ |
| Storage Temperature | -10℃ ~ + 70℃ |
SOLID SF-810DLX Digital Satellite dB meter with Live TV Screen
- Brand: SOLID
- Product Code: SF-810DLX
- Availability: In Stock
-
₹6,075.00
